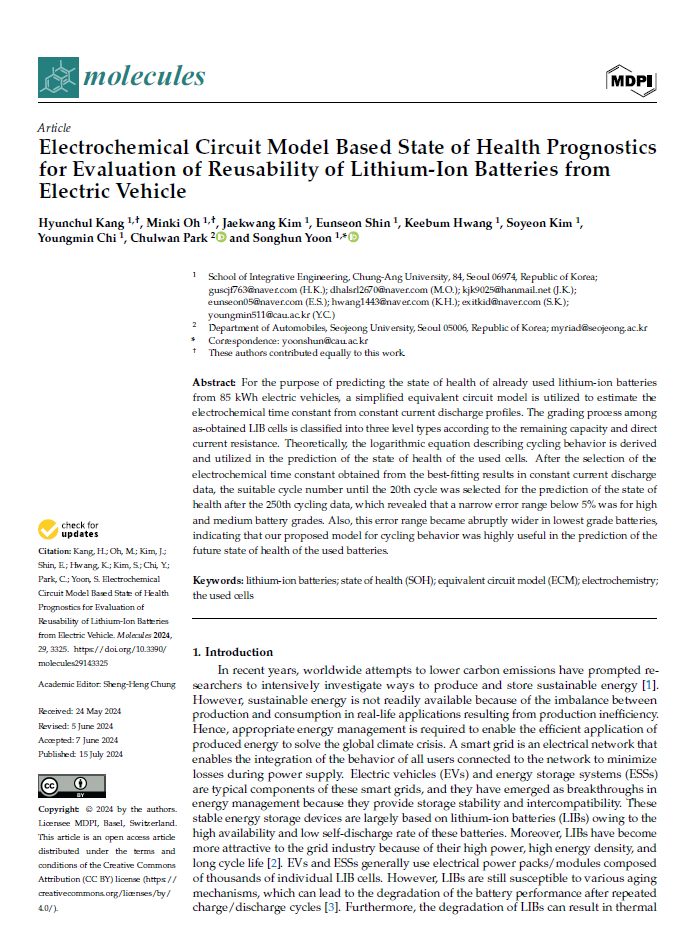

Electrochemical Circuit Model Based State of Health Prognostics for Evaluation of Reusability of Lithium-Ion Batteries from Electric Vehicle

 For the purpose of predicting the state of health of already used lithium-ion batteries from 85 kWh electric vehicles, a simplified equivalent circuit model is utilized to estimate the electrochemical time constant from constant current discharge profiles. The grading process among as-obtained LIB cells is classified into three level types according to the remaining capacity and direct current resistance. Theoretically, the logarithmic equation describing cycling behavior is derived and utilized in the prediction of the state of health of the used cells. After the selection of the electrochemical time constant obtained from the best-fitting results in constant current discharge data, the suitable cycle number until the 20th cycle was selected for the prediction of the state of health after the 250th cycling data, which revealed that a narrow error range below 5% was for high and medium battery grades. Also, this error range became abruptly wider in lowest grade batteries, indicating that our proposed model for cycling behavior was highly useful in the prediction of the future state of health of the used batteries.
